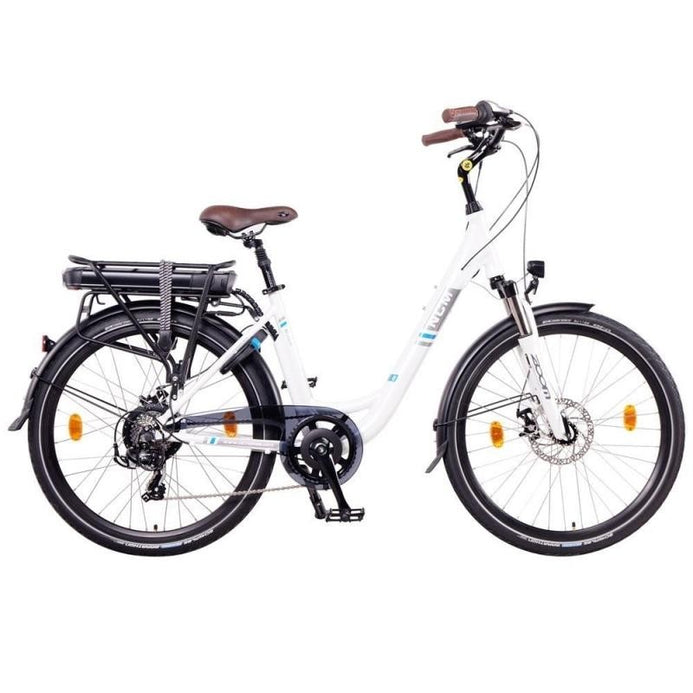

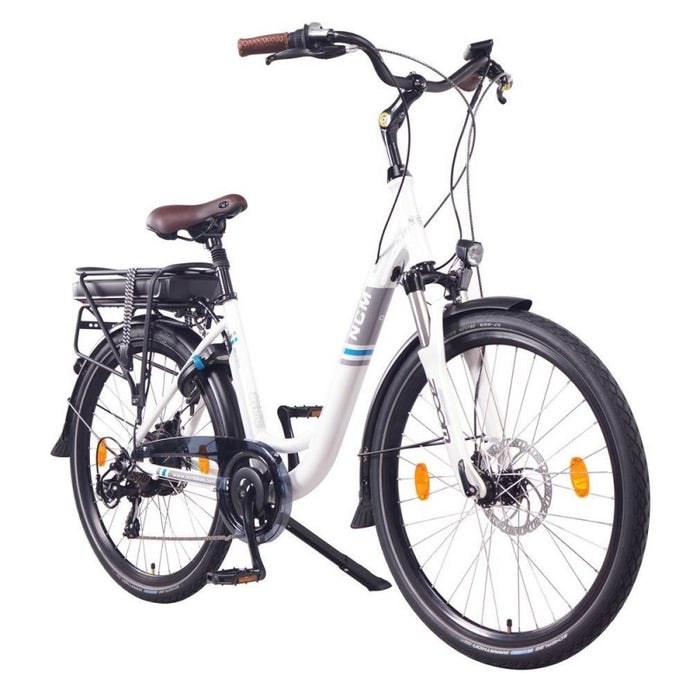

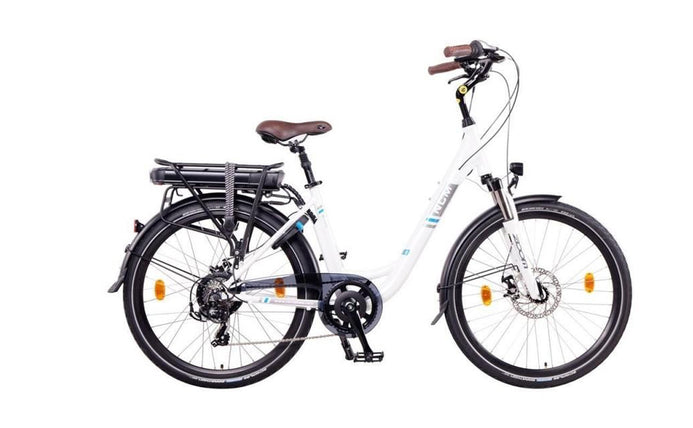

NCM MUNICH

SIZE
COLOUR
WHITE

The NCM Munich is a low entry version based on our NCM Hamburg model. Easy access to the low-step design.The relatively light and robust aluminum alloy incl. Sturdy frame is available in two sizes. The 36V battery and the Bafang engine come together to chauffeur you through your daily commute or errands, without having to recharge the battery often. With a range of comfort and practical features such as seat post suspension, adjustable ergonomic seating position, luggage rack and built-in bicycle lock, the NCM Munich is an ideal choice as a daily travel companion.



display: The kit, L6B (3.0 VR), LCD, 6 levels of assistance, 6km / h traction help / push assistance
controller: The kit, CT4 controller, 36V 14A
Engine: The kit X15, 36V 250W, 25 km / h, rear engine
Battery pack: DEHAWK R3S-3613H, 36V 13AH, Li-Ion High Power cells, 468 WH, range approx. 50-70km, ECO mode approx. 90km (power button below the battery near the tail light)
Charger: SANS 36V 2A included (round plug) DC362DE
Front light: LED, KENDO by Spanninga 20 LUX, powered directly by the battery
Taillight: LED, LINEO by Spanninga StVZO approved, battery operated with 2 x AA 1.5V
Frame: Aluminum 6061, 26 "* 440MM, white
fork: ARIA ZOOM 187D, 26 "with suspension
handlebar: Stem: Promax MQ-527, aluminum (adjustable), handlebar: FQ, FQ-NR-14, width 595mm
Brake levers: Tektro, L: EL555-RT with brake cut to engine, R: CL530-TS
brakes: Vor./Hin .: Tektro MD-M280 Disc Brakes, Mechanical
derailleur: Shimano, Tourney, SL-RS45-7R, 7 speed
Crankset: TL, ICA170ABK, 165mm, aluminum. 44T
Circuit: Shimano, Tourney, SL-RS45-7R, 7 speed
Hollow rim: Width: 21mm and diameter: 570mm
Pinion: LY, LY-1007CFN, 7x Screw Ring, 14-28T
Tire: Schwalbe, Marathon, 26 "* 1.75, black
Saddle: Selle Royal, FREEWAY-A194DR100812, brown (imitation leather)
Seat Post: Promax, Aluminum SP-884 27.2 * 300MM diameter, with suspension
handles: Selle Royal, JF510 brown (imitation leather)
pedals: Wellgo, B087, black
Max. Permissible total weight: Including driver up to 125kg

Collections: Step - Through
